Core Introduction

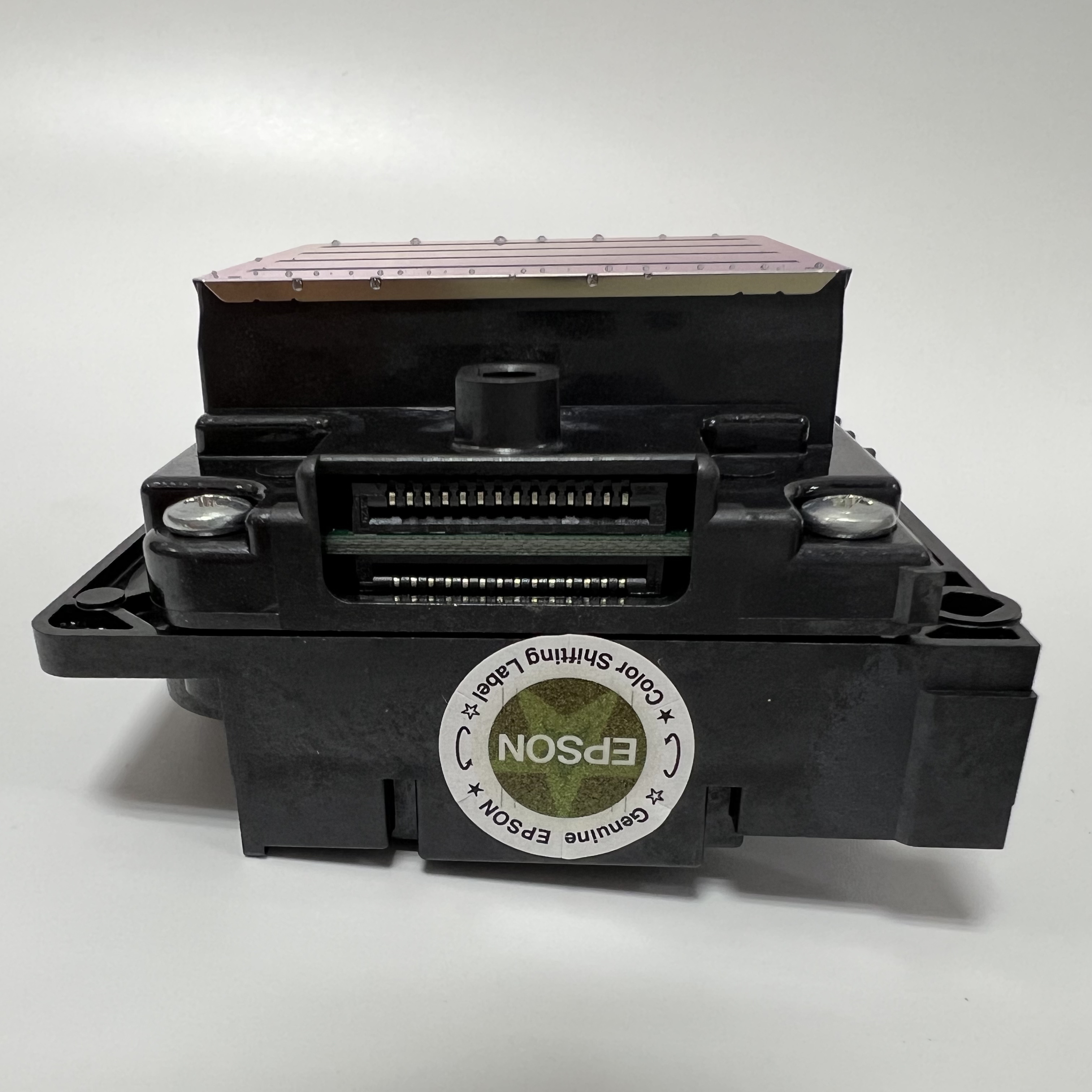

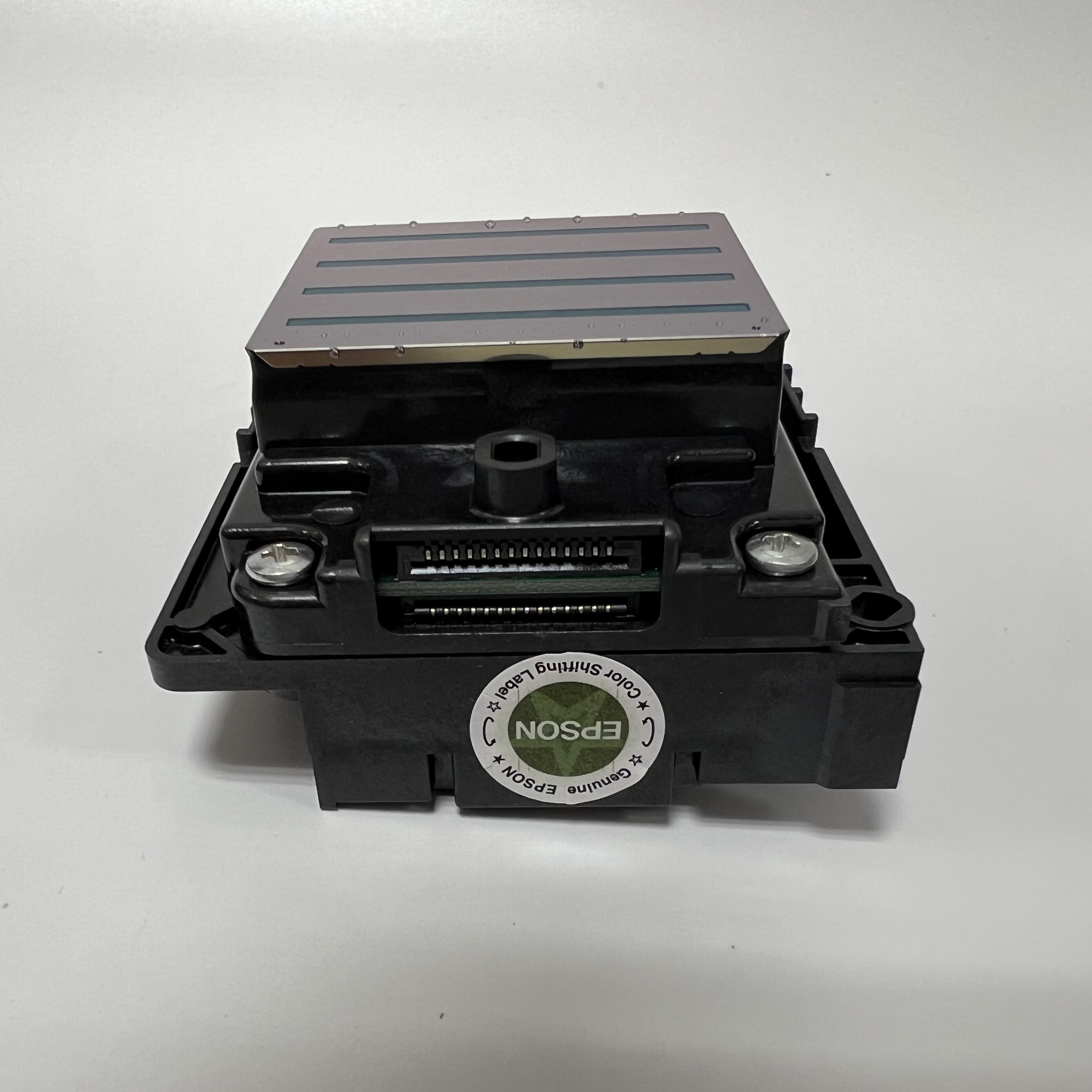

The i3200-A1 features Epson’s advanced MEMS (Micro-Electro-Mechanical Systems) manufacturing technology with a PrecisionCore structure, ensuring precise nozzle arrangement and consistent droplet ejection. It supports variable droplet technology (VSDT) for multi-level grayscale printing, enabling smooth color transitions and sharp image details. Optimized for aqueous (AQ) inks, it is widely used in textile printing, signage, packaging, and custom apparel, balancing speed and print quality for diverse production needs.
| Item | Specification |
|---|---|
| Model | i3200-A1 |
| Type | PrecisionCore MicroTFP Printhead |
| Ink Compatibility | Aqueous (AQ) inks |
| Dimensions (W×D×H) | 69.1 × 59.4 × 35.6 mm |
| Weight | 82 g |
| Nozzle Configuration | 3,200 nozzles (8 nozzle rows) |
| Nozzle Pitch | 1/300 inch (per row) |
| Resolution | 300 NPI/row; 600 NPI/2 rows |
| Effective Print Width | 33.8 mm (1.33 inches) |
| Max Color Channels | 4 colors |
| Ink Viscosity Range | 3.0–4.0 mPa·s |
| Jetting Frequency | 43.2 kHz (single); 21.6 kHz (multi) |
| Droplet Sizes & Frequencies |
- Binary: 6 pl at 43.2 kHz- 3-level grayscale: 6.3/12.3 pl at 21.6 kHz- 4-level grayscale: 3.8/6.1/9.4 pl at 21.6 kHz
|
| Positioning | Reference hole for precise alignment |
Features & Advantages
- High Resolution: Up to 600 NPI (2 rows) for sharp, detailed prints.
- Variable Droplet Technology: Supports 2–4 grayscale levels, ensuring smooth gradients and rich color reproduction.
- Compact & Lightweight: Space-saving design with low weight for easy integration into printers.
- Durable & Reliable: PrecisionCore construction ensures long-term stability and consistent performance.
- Versatile Application: Ideal for aqueous ink-based printing in textiles, signage, and custom products.
Application Fields of Epson i3200-A1 Printhead
The Epson i3200-A1 printhead, featuring aqueous ink compatibility, high resolution and multi-grayscale output, is widely used in textile printing, advertising signage, packaging printing, home decoration, personalized customization and other fields. It balances printing speed and quality, making it suitable for both industrial and commercial mass production.
Main Application Fields (By Industry)
1. Textile and Apparel Printing (Core Application Field)
- Sublimation printing: Sportswear, home textiles, curtains, banners, upholstery fabrics, personalized clothing, sportswear, home apparel.
- Direct-to-garment/Direct-to-film (DTG/DTF) printing: T-shirts, hoodies, hats, bags, shoe materials and other personalized customized products.
2. Advertising and Signage Printing
- Indoor advertising: Light boxes, posters, display boards, display racks, mall guides, indoor decorative paintings.
- Outdoor advertising: Vehicle wraps, adhesive stickers, banners, flags, light box films (for aqueous/weak solvent compatible printers).
- Decorative films: Glass stickers, wallpaper, decorative films, soft furnishing prints.
3. Packaging and Label Printing
- Label printing: Wine labels, nameplates, product labels, self-adhesive labels.
- Packaging printing: Paper boxes, cartons, gift boxes, small-batch packaging proofs, flexible packaging proofs.
- Commercial printing: Flyers, picture albums, posters, commercial tickets (for aqueous/coated paper compatible printers).
4. Home Decoration and Furnishing Printing
- Home decoration: Tiles, decorative panels, aluminum ceilings, decorative boards, canvas, fine art prints.
- Soft furnishing printing: Curtains, tablecloths, pillows, carpets, wall fabrics and other home textile decorations.
5. Industrial and Special Material Printing
- Flatbed printing: Acrylic, PVC, PET, glass, metal, leather, rigid boards.
- Industrial printing auxiliary: Adhesive jetting, metal 3D printing prototypes (for industrial-grade compatible printers).
- Functional printing: Electronic component printing, precision coating, functional material jetting (for industrial customized scenarios).
Application Advantages
- High resolution (600 dpi/2 rows) and multi-grayscale output ensure smooth color transitions and sharp details.
- Aqueous ink compatibility, eco-friendly and low-odor, suitable for textile, packaging, indoor advertising and other scenarios.
- Compact structure and stable durability, adaptable to high-speed production and multi-printhead integration.
- Single-head effective printing width of approx. 33.8 mm, combinable with multiple heads for wide-format industrial printing.
